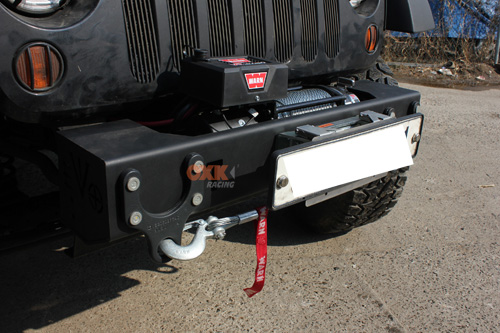

WARN 원사 VR10000 윈치

Jeep전차종



































VR10000 SPECS/PART NUMBERS
Part Numbers: PN 86255 (12V DC)
Rated Line Pull: 10000 lbs. (4536 kgs.) single-line
Motor: 12V DC, Series Wound™
Electrical Controls: Solenoid
Remote Control: Remote switch, 12" (3.7m) Lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight (kit shipping): 89 lbs. (40.4 kgs.)
Wire Rope: 3/8" x 94' (9.5mm x 28.6m)
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Powder coat over primer undercoating
Warranty: Limited Lifetime

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 25.9 (7.8) 66 amps 1/10000(4536)
2000(910) 13.0 (3.9) 160 amps 2/8000(3629)
4000(1810) 9.6 (2.9) 247 amps 3/7280(3302)
6000(2720) 7.1 (2.1) 332 amps 4/6670 (3026)
8000(3630) 5 (1.5) 417 amps 5/6230 (3826)
10000(4536) 2.3 (0.7) 502 amps



Winch Dimensions: 20.80" L. x 6.3" D. x 6.97" H.
(528mm L. x 160mm D. x 177mm H.)
Mounting Bolt Pattern: 10.0" x 4.5"
(254mm x 114.3mm)



Parts Included

  • VR10000lb Winch
  • Control Pack
  • 94’ of 5/16” (28.6m of 8mm) diameter wire rope with Hook
  • Roller Fairlead
  • Remote control with 12’ (3.7m) lead
